Brand: ATN Corp

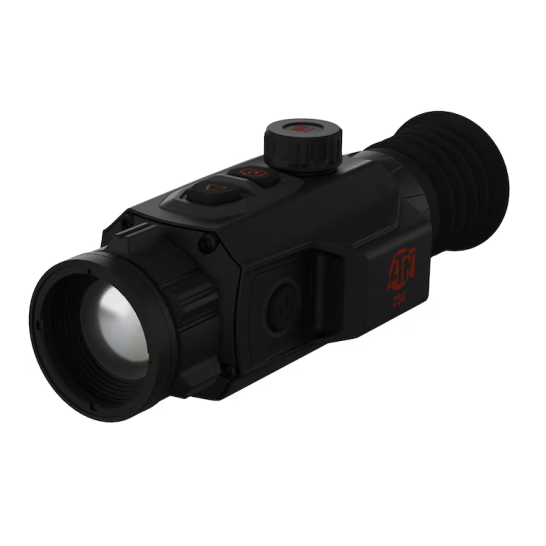

Model/Series: THOR-6 - 2-16x Mini Compact Thermal Rifle Scope
Detector Type:12μm VOx Uncooled Focal Plane Array
Sensor Resolution: 256×192
Refresh Rate: 50 Hz
Thermal Sensitivity (NETD): ≤20mK
SharpIR©: Yes
Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual
Lens System: 15 mm (Ge); F/1.0
Field of View (HxV): 11.7° × 8.8°
Focus Mechanism: Manual, Front Lens Adjustment
Magnification: 2-16×
Digital Zoom: 1×, 2×, 4×, 8×
Zoom Type: Step & Smooth Zoom
Detection Range: 1200 m
Display Resolution: 0.32" OLED, 800×600 Resolution
Picture-in-Picture (PIP): Yes
Reticle Types: 10 Styles
Zeroing Freeze: Yes
Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Eye Relief: 50 mm
Diopter Range: -5 to +5 D
Battery Type: 18650 rechargeable (qty 2 included)
Battery Life: ~8 hrs (4 hr per battery)
Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)
Internal Storage Capacity: 64 GB
Video / Audio Recording: Yes
Geomagnetic + Gyroscope: Yes
Hot Point Tracking: Yes
Reticle Transparency Control: Yes
Recoil Activated Video (RAV): Yes
Standby / Sleep Mode: Yes
Media Output: USB Type-C
App (Apple Store / Google Play): Yes (ATN Connect 6 – iOS & Android)
Material Magnesium: Alloy
Mounting: Picatinny Rail
Weight: 500 g / 1.10 lbs
Dimensions (L x W x H): 180×65×65 mm (7.09×2.56×2.56 in)
Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms
Waterproof / IP Rating: IP67

Features

Powered by a 12μm thermal core, the ThOR 6 mini comes in three configurations: 256×192 (≤20 mK NETD, Enhanced Sensitivity), 384×288 and 640×512 (≤18 mK NETD, High Sensitivity). This gives you the flexibility to choose the resolution that matches your hunting style, environment, and engagement range. Whether you’re scanning wide-open fields or weaving through dense brush, the advanced NETD ratings reveal even the faintest heat signatures—like a hog bedded in cover or a coyote slipping through early morning fog. Expect higher contrast, sharper detail, and faster target acquisition in the harshest conditions. Choose your resolution. Trust your clarity. Own the night.
