Brand: ATN Corp

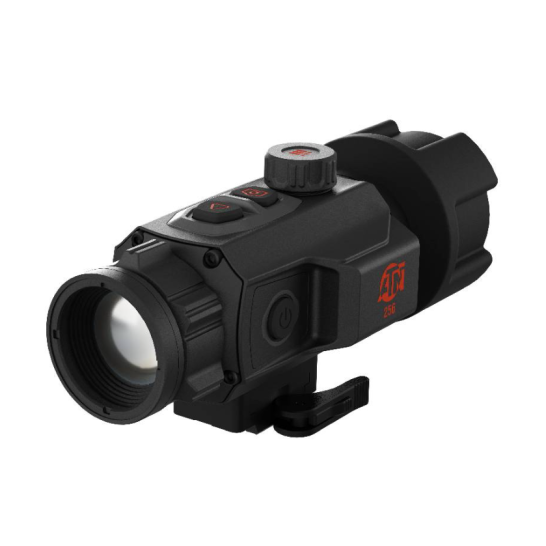

Model/Series: TICO-6 Thermal Clip-On
Detector Type:12μm VOx Uncooled Focal Plane Array
Sensor Resolution: 256X192
Refresh Rate: 50 Hz
Thermal Sensitivity (NETD): ≤20mK
SharpIR©: Yes
Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual
Lens System: 25 mm (Ge); F/1.0
Field of View (HxV): 7° × 5.3°
Focus Mechanism: Manual, Front Lens Adjustment
Optical Magnification: 1×
Optimal Day Scope Magnification: 1-8x
Detection Range: 1500 m
Display Resolution: 0.32" OLED, 800×600 Resolution
Picture-in-Picture (PIP): Yes
Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Battery Type: 18650 rechargeable (qty 2 included)
Battery Life: ~8 hrs (4 hr per battery)
Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)
Internal Storage Capacity: 64 GB
Video / Audio Recording: Yes
Geomagnetic + Gyroscope: Yes
Hot Point Tracking: Yes
Recoil Activated Video (RAV): Yes
Standby / Sleep Mode: Yes
Media Output: USB Type-C
App (Apple Store / Google Play): Yes (ATN Connect 6 – iOS & Android)
Material: Magnesium Alloy
Mounting: Quick Detach (included) / Scope Mounting System (add-on)
Weight: 511 g / 1.12 lbs
Dimensions (L x W x H): 159×85×74 mm (6.25×3.34×2.91 in)
Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms
Waterproof / IP Rating: IP67

Features

At the heart of the TICO 6 is ATN’s most advanced 6th Generation thermal engine, delivering sharp, detailed imaging with a fast 50 Hz refresh rate. Available in three sensor options: 256×192 (≤20mK), 384×288 (≤18mK), and 640×512 (≤18mK), the TICO 6 provides unmatched clarity across all environments. Hunters can detect coyotes slipping across fence lines or hogs rooting through brush even in total darkness. Border patrol and perimeter security teams gain the ability to monitor crossings and open terrain day or night, while SAR and law enforcement professionals can track people or threats hidden by smoke, fog, or heavy cover. This engine transforms unseen heat into actionable detail, keeping you aware and in control.
