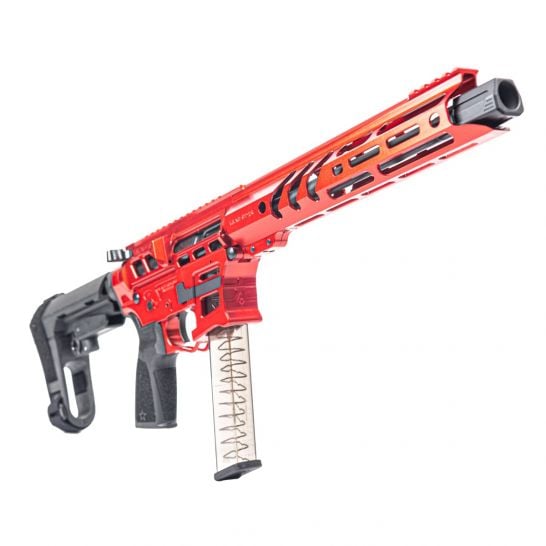

Lead Star Arms Barrage 16" Skeletonized 9mm Rifle, Red Competition Edition
Out of stock

Lead Star Arms Barrage 16" Skeletonized 9mm Rifle, Red Competition Edition

Brand Lead Star Arms
UPC 810055794409
Customers must read Compliance Information before purchasing.
Handling firearms or firearms parts can expose you to lead and other petroleum products known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands thoroughly after handling. For more information go to www.p65warnings.ca.gov (CA Health and Safety Code Section 25249.6).

Product Details


Chamber: 9MM

Barrel Length: 10.5”

Barrel Material: 4150 QPQ

Barrel Finish: Nitride

Barrel Profile: A2 Style

Twist Rate: 1 in 10”

Muzzle Device: Enhanced Muzzle Break

Muzzle Thread:  ½” x 28

Extension: M4

Upper Receiver: Lead Star 7075 T6 Aluminum

Receiver Style: M4 Flat top with feed ramps

Receiver Finish: Type II Class 3 Anodized

Handguard Style: Lead Star Ravage 11" MLOK Handguard

Bolt Steel: Carpenter 158

Bolt Carrier Steel: 8620

Lower Receiver: Lead Star 7075 T6 Aluminum

Receiver Finish: Type II Class 3 Anodized

Grip: Barrage Grip

Fire Control Group: Enhanced Hiperfire® Elite

Buffer System: Blitzkrieg Components / KynSHOT Hydraulic Buffer

Stock: SB Tactical SBA3 pistol brace.

Magazine: (1) 30-Round ETS Magazine (where available by law)


Ultralightweight pistols are engineered for speed and performance. Designed with cutting-edge programming and precision machined with state-of-the-art CNC machines. They combine aggressive styling with reliability and accuracy.


 Upper Receiver: Fully CNC machined from 7075-T6 aluminum for extreme precision and enhanced durability. Flat top picatinny design for versatility in mounting optics and other enhanced components. CNC engraved numbered rail system. Lead Star's truss system design reinforces key areas for increased strength without added weight. M4 feed ramps for added reliability.

Lower Receiver: Includes our integrated feed ramp for reliable feeding including hollow points! Integrated and reliable LRBHO (last round bolt hold-open) for AR-15 bolt release functionality in an AR-9. LRBHO is easily removed with 3 screws for competition shooters. Use with Lead Star Arms bolt carrier groups, these were tested during development and proven to work reliably for the last round bolt hold-open function. Huge magwell entry chamfer for way faster and easier magazine changes. No aftermarket funnel is needed it is so large.  Glock® magazine compatible.  Fully CNC machined from 7075-T6 billet aluminum for extreme precision and enhanced durability. Lead Star's truss system design reinforces key areas for increased strength without added weight. The front magwell grip surface is designed for the operator to grip and maintain weapon control even in the most extreme conditions. Tension device to increase rigidity between upper and lower receivers. A built-in trigger guard eliminates the need for a flip-down trigger guard. Designed to be compatible with MIL-spec upper receivers so it can be used if necessary but lines will not match.

11" Handguard: Ultra lightweight slim profile designed for duty use. CNC machined 6061-T6 aluminum. The unique design offers ultra-capture around the barrel nut eliminating the requirement for anti-rotation tabs. Eliminates harmonics from attached accessories, greatly improving weapon accuracy. Full-length picatinny CNC engraved numbered rail at the 12 o'clock position. 2 M-LOK slots at the 3 and 9 o'clock positions and full-length M-LOK at the 6 o'clock position for mounting only the picatinny rail needed or accessories.

Fire Control Group: Enhanced Hiperfire® Elite trigger. Curved trigger with a crisp, clean break. Very short over travel with a very positive reset.

Barrel: 4150 QPQ 10.5" barrel. 1:10 Twist.

Bolt Carrier Group: Enhanced 8620 steel bolt, with an enhanced firing pin and external 5.56 style ejector. Uniquely finished with a Salt Bath Black Nitride and utilizing an M16 style extractor, this bolt is designed for superior performance and durability. Has coil spring retaining pin ideally used for skeletonized receivers. Removable weight for different recoil systems making it compatible with captured spring buffer systems.

Finish: Type II Class 3 anodized. Due to the chemical process that takes place during anodizing, the finish on the product can vary, even if it is the same batch.

Gas System: Blowback for reliability.

Muzzle Device: Enhanced design compensator dramatically reduces recoil. Unique geometry minimizes muzzle rise for faster follow-up shots. Pre-drilled on the bottom for pinning muzzle brake to the barrel. Precision CNC 7075-T6 aluminum.

Buffer System: Blitzkrieg Components / KynSHOT Hydraulic Buffer. Optimized so that it runs reliably, softens recoil, smooths out the action, and stops just behind the bolt catch.

Grip: Barrage Grip. Black with a reinforced impact-resistant polymer that provides maximum comfort and weapon control in all conditions.

Stock: SB Tactical SBA3 pistol brace.

Magazine: Comes standard with 1 ETS 30 round 9mm magazine.
