PSA 16" M4 5.56 NATO 1/7 Carbine-Length Nitride 13.5" Lightweight M-Lok MOE EPT Rifle Kit With MBUS Sight Set - 516447430
|Brand||Palmetto State Armory|
Barrel Length: 16"
Gas System: Carbine
Barrel Profile: M4
Barrel Steel: 4150 Chrome-Moly Vanadium
Barrel Finish: Nitride
Chrome Lining: None
Muzzle Thread: 1/2-28
Chamber: 5.56 NATO
Twist Rate: 1:7
Barrel Extension: M4
Diameter at Gas Block: .750
Gas Block Type: Low-profile
Muzzle Device: A2 Flash Hider
Receiver Material: Forged 7075 T6
Receiver Type: M4
Handguard Type: PSA 13.5" Lightweight M-Lok Rail
Bolt Carrier Group Included: Yes
Bolt Steel: Carpenter 158
Bolt Carrier Profile: Full-auto
Charging Handle Included: Yes
Optics: Magpul MBUS Front and Rear Flip-Up Sights, Black
Fire Control Group: PSA Enhanced Polished Trigger (EPT) FCG
Overall Length: 24.5"
Weight: 4.0 lbs
Barrel: 16" 4150V Chrome Moly Vanadium steel barrel, chambered in 5.56 NATO, with a 1:7 twist, M4 barrel extension, and a carbine-length gas system. The barrel is finished with with a .750" diameter low-profile gas block, PSA 13.5" Lightweight M-Lok Free Float Rail and an A2 flash hider.
Upper: Forged 7075-T6 A3 AR upper is hard coat anodized black for durability. Featuring M4 feedramp cuts, these upper upper receivers are made for us right here in the USA.
Bolt Carrier Group: For AR15 and M16 rifles and carbines. Bolt is made of shot-peened, Mil-spec Carpenter 158® steel. Gas key is secured with grade 8 fasteners and staked. Bolt carrier is parkerized outside and chrome lined inside. Includes Charging Handle.
Lower Build Kit: PSA MOE EPT Lower Build Kit, Black
Includes: Magpul MBUS Sight Set, Black

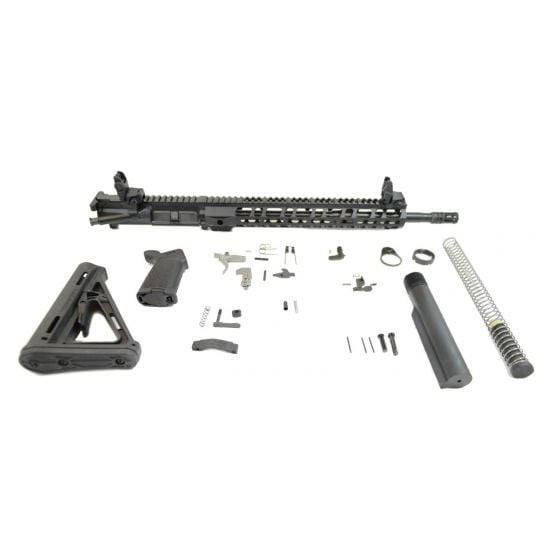

Your new Palmetto State Armory kit will include the listed components that are required to assemble into a complete AR rifle or pistol:
Fire Control Group
- AR-15 Hammer
- Hammer Spring
- AR-15 Trigger
- Trigger Spring
- Trigger/Hammer Pins
- Disconnector Spring
Buffer Tube Assembly
- Buffer Tube
- Buffer Spring
- Castle Nut
- Latch Plate
- Buffer Retainer Detent
- Buffer Retainer Detent Spring
Takedown & Pivot Pin Assembly
- Takedown Pin
- Pivot Pin
- Takedown Springs (3)
- Takedown Detents (3)
Bolt Catch Assembly
- Bolt Catch
- Bolt Catch Detent
- Bolt Catch Detent Spring
- Bolt Catch Roll Pin
*Not included in 9mm build kits.
Magazine Catch Assembly
- Magazine Catch
- Magazine Catch Button
- Magazine Catch Spring
Safety Selector Assembly
- Safety Selector
- Selector Detent
- Selector Spring
Q & A
These items are controlled by the U.S. Government and authorized for export only to the country of ultimate destination for use by the ultimate consignee or end-user(s) herein identified. They may not be resold, transferred, or otherwise disposed of, to any other country or to any person other than the authorized ultimate consignee or end-user(s), either in their original form or after being incorporated into other items, without first obtaining approval from the U.S. government or as otherwise authorized by U.S. law and regulations.
Full Lifetime Warranty.
Palmetto State Armory firearms are covered by an industry leading Full Lifetime Warranty. This extends beyond the original purchaser. We want the person who bought a great quality firearm at an excellent price to have comfort in knowing that no matter what, the firearm can be fixed at no additional cost.
This includes shipping both ways.
We strive for excellence all the way through production and hope customers never have to use this warranty but we also pride ourselves in 99% non-repair/return ratio. It is there for peace of mind so that the consumer can be confident in their purchase. Should the consumer ever need to contact us regarding a repair under the warranty, simply use our contact form or give us a call at 877-560-7229.
Palmetto State Armory firearms and parts are backed by our Full Lifetime Warranty. Our PSA firearms and parts are warranted to be free from defects in materials and craftsmanship for the serviceable lifetime of the firearm or part. All Palmetto State Armory barrels are machined and guaranteed to be concentric with the bore of our barrels.
For the Life of our product
The liability of Palmetto State Armory under this warranty shall be limited solely to the obligation to repair or replace the firearm/part or defect at its discretion, and to pay transportation and insurance charges for return of the firearm to the owner for a rightful warranty claim. This warranty is transferable for the serviceable lifetime of the firearm or part. Modification of firearm will void this warranty. This warranty does not cover normal wear or any damage resulting from careless handling, neglect, repairs and adjustments, corrosion, improper, substandard or defective ammunition.
What we don't cover
Under no circumstances shall Palmetto State Armory be responsible for incidental or consequential damages with respect to economic loss or injury to property, whether as a result of express or implied warranty, negligence or otherwise. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. Palmetto State Armory will not be responsible for the results of careless handling, unauthorized adjustments, defective, low-quality, reloaded, or improper ammunition, corrosion, neglect, ordinary wear and tear, or unreasonable use.
Initiating a claim
To initiate a Warranty claim, call Palmetto State Armory Customer Service:
- Customer service will issue an RMA number to allow for the return of the firearm.
- Warranty claims must have this RMA filled out, and included in the box with the firearm or part.
- The firearm or part concerned must be shipped using the prepaid label our representative emails to you.
Palmetto State Armory will pay shipping and insurance charges for the return of a firearm or part to its owner or FFL, if the related claim is a proper claim for warranty work. If Palmetto State Armory is unable to fix the original serial number, a new one will be sent out, but must go to an FFL for transfer back to the customer. Another background check will be completed at the time of transfer. Palmetto State Armory is not responsible for transfer fees at the FFL.
