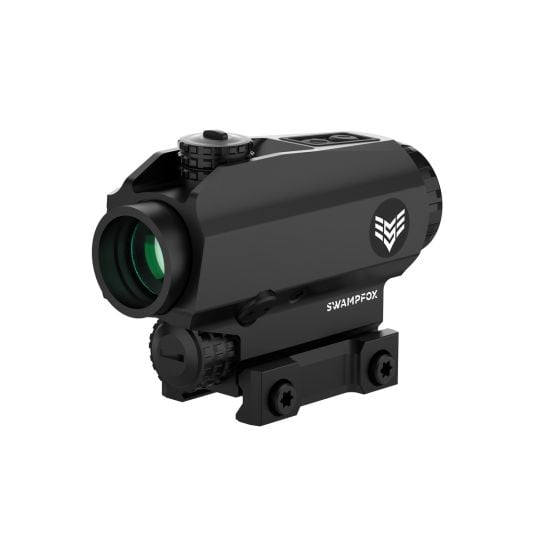

Swampfox Optics Blade Prism Sight 1x25mm
| SKU | 51655219639 |
|---|---|
| Brand | Swampfox Optics |
| MPN | BPS00125-A |
| UPC | 889157001876 |
Product Details
Details
- Optic Max Magnification: 1
- Optic Objective Diameter: 25
- Optic Mount: Picatinny
- Optic Sight Type: Prism
- Optic Adjustment Increment: 0.5 MOA
- Battery Type: CR123A
- Ecommerce Platform: AR-15
- Model or Series: Blade
- MOA / MIL: 90 MOA
- Illuminated: Illuminated Reticle
- Eye Relief (mm): 96.52
- Exit Pupil: 13.50
- Reticle Color 1: Amber
- Battery Life: 3000 hr
- Features: IPX7 Waterproof|Scratch-Resistant|CQB BRC Reticle
- Material: 6061-T6 Aircraft Grade Aluminum Alloy
- Shipped Accessories: Anti-Reflection Device, Battery, Flip-Up Lens Cover, Integral Picatinny Mount, Lens Cloth, Wrench
- Length (inches): 4
- Width (inches): 2.44
- Height (inches): 3
- Weight (pounds): 0.82
Features
The Blade by Swampfox is a 1x25mm prism sight specifically optimized for close quarters battle (CQB) scenarios. It incorporates a bullet rise compensating (BRC) etched reticle that accounts for the optic's height over bore, making it particularly suitable for distances of 5, 10 and 15 yd on a 5.56 AR-15 platform. The Shake N' Wake feature automatically powers the device on and off, thereby conserving battery life. The etched reticle ensures a clear sight picture, which is advantageous for shooters with astigmatism. The Blade is engineered to enhance reliability and performance, serving as a dependable and efficient aiming tool for any shooter. It is specifically designed to address the challenges encountered in CQB situations, offering a precise and rapid response to height over bore issues. Additionally, the BRC reticle provides a 50-200 yd zero at the tip of the chevron, further augmenting its utility.
- Gravity exerts a downward force on moving projectiles, with its influence increasing proportionally to the distance traveled
- Standard zero settings, such as 50 - 200, complicate short-range engagements due to the height over bore, affecting accuracy and precision
- Blade's BRC provides a solution featuring dedicated holds for precise targeting at 5, 10 and 15 yd, compatible with AR-15 and similar platforms
- Settings 1 and 2 ensure NV device compatibility, settings 3 to 8 are optimized for indoor brightness, while 9 and 10 provide daylight brightness for direct overhead light conditions
- Prism optics, unlike standard red-dot sights, impose limitations on eye relief and the eye box, requiring precise alignment for optimal performance
- A 13.5mm exit pupil has been incorporated to effectively address this issue, offering an expansive and accommodating field of view
- After installation, adjust the rear diopter to enable a shooting experience with both eyes open
- An etched reticle provides advantages for all users, including those with astigmatism or individuals preparing for extreme survival scenarios
- The Blade's integrated 1913 picatinny mounting system enhances structural integrity, ensuring a straightforward and reliable mounting process
- The Blade's robust 6061-T6 aircraft-grade aluminum housing endures harsh conditions, ensuring reliability and effectiveness for shooters in extreme environments
