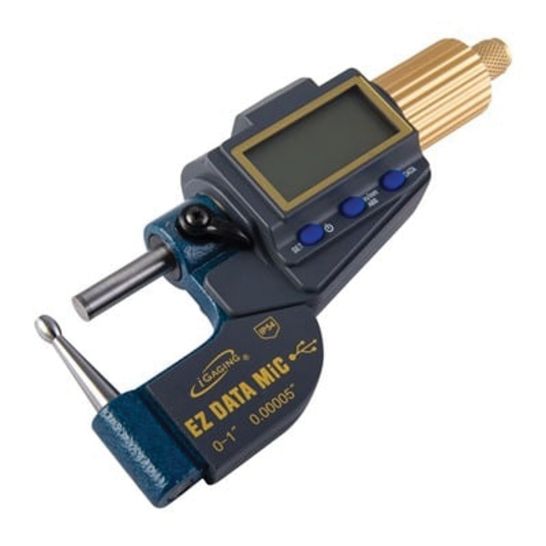

The iGAGING EZ data tube micrometer eliminates the challenges associated with measuring case neck thickness. This micrometer is equipped with numerous essential and advanced features for traditional measurement applications. Notably, it includes an egg-shaped anvil specifically designed to facilitate the measurement of brass-neck thickness. The iGAGING EZ data tube micrometer offers precision up to 0.0015 inches and can measure objects up to 1 inches in width. It provides readouts in both inches and millimeters, with an LCD display for immediate results. For permanent data collection, a data-output port enables seamless transfer of measurements to a computer.

IP54 protection rating - resistance to moisture and dust
High-resolution, expansive LCD panel with enhanced visual clarity and wide viewing angles
Criterion a for electrostatic discharge (ESD) compliance evaluation
Inch/metric conversion
Measurement resolution is 0.00005 inches (equivalent to 0.001mm)
Accuracy of 0.00015 inches (0.003mm)
Absolute/incremental configuration
Data output button for simplified operation
All metal ratchet stop
SPC/USB interface facilitates seamless data transmission, ensuring efficient and reliable output for enhanced performance and interoperability across compatible devices and systems
The device is equipped with a 3V CR2032 battery, which is included
