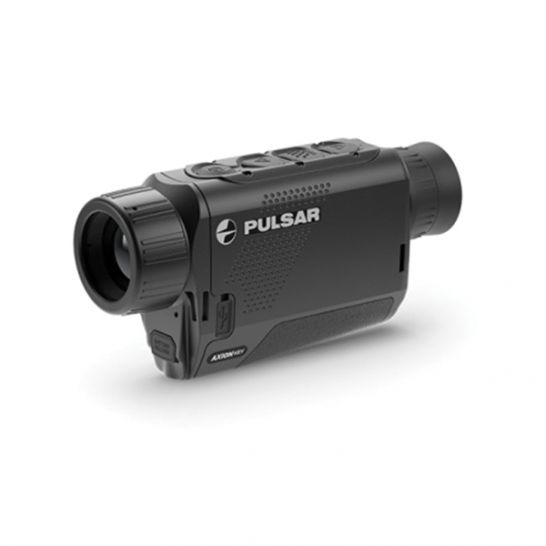

Pulsar Axion Key XM22 2-8x22mm Thermal Rangefinder - PL77424
Out of stock

Pulsar Axion Key XM22 2-8x22mm Thermal Rangefinder - PL77424

SKU 789357
Model Number PL77424
Brand Pulsar
UPC 812495024238
Customers must read Compliance Information before purchasing.

Product Details


  • Series/Collection: Axion Key XM22
  • Eye Relief: 14mm
  • Field of View: 10 x 7.5 deg, 17.5 x 13.1 m at 100 m
  • Length: 5.39"
  • Magnification: 2-8x
  • Maximum Distance: 1000 yd
  • Objective Size: 22mm
  • Optic Battery Type: 3 to 4.2 V 3200 mAh Lithium-Ion
  • Proofs: Waterproof
  • Body Type: Monocular
  • Includes: APS 3 Battery Pack, USB Cable, Hand Strap, Lens Cleaning Cloth, Carrying Case
  • Microbolometer Resolution: 320x240p
  • Frame Rate: 50 Hz
  • Display Type: LCOS
  • Temperature Rating: -10 to 40 deg F
  • Display Resolution: 960x720p



  • 320x240 resolution, 12 um pixel pitch core
  • 1000 yd detection range
  • 4x digital zoom - continuous zoom and 2x, 4x stepped zoom
  • Lightweight and rugged magnesium alloy housing
  • B-Pack mini power system
  • Picture-in-picture digital zoom
  • LCOS micro display
  • External power supply adaptable
  • Multiple color viewing modes
  • Stadiametric rangefinder
  • IPX7 waterproof rated
