Pulsar Axion XM38 5.5-22x38mm Thermal Rangefinder - PL77422
In stock

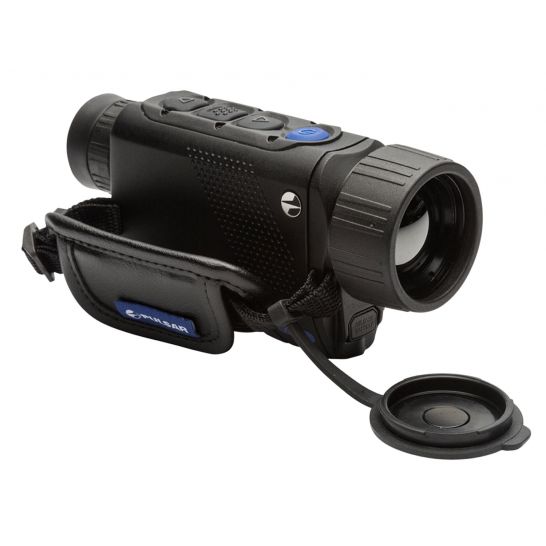

Pulsar Axion XM38 5.5-22x38mm Thermal Rangefinder - PL77422

SKU 789356
Brand Pulsar
Model Number PL77422
UPC 812495024221
This product is fulfilled by a PSA Partner and shipping times may vary.

Product Details


  • Series/Collection: Axion XM38
  • Eye Relief: 15mm
  • Field of View: 5.8 x 4.3 deg, 10.1 x 7.6 m at 100 m
  • Length: 5.8"
  • Magnification: 5.5-22x (x4 Zoom)
  • Maximum Distance: 1860 yd
  • Objective Size: 38mm
  • Optic Battery Type: 3 to 4.2 V 3200 mAh Lithium-Ion
  • Proofs: Waterproof
  • Body Type: Monocular
  • Includes: APS 3 Battery Pack, Battery Pack Charging Kit, USB Cable, Hand Strap, Lens Cleaning Cloth, Carrying Case
  • Microbolometer Resolution: 320x240p
  • Frame Rate: 50 Hz
  • Display Type: AMOLED
  • Wi-Fi: 802.11 b/g, 2.4 GHz
  • Temperature Rating: -25 to 40 deg F
  • Video/Photo Resolution: 1024x768p
  • Video/Photo Format: .mp4/.jpg
  • Built-In Memory: 8 GB
  • Display Resolution: 1024x768p


Offering the highest magnification in its class, the Axion XM38 has an incredible detection range of 1800 yd with its 12 um pixel pitch sensor. Small enough to t in your pocket, this feature rich XM38 thermal monocular is perfectly suited for all your outdoor pursuits. Revolutionary electronics make it possible to conserve battery life with the quick automatic start-up. The high-contrast AMOLED micro display with HD 320x240 resolution produces vivid colors, excellent image quality and flawless performance in any weather condition. A 5.5 to 22x magnication range with fluid x4 digital zoom helps identify details in objects during the day and at night in almost any type of condition.


  • 320x240 resolution, 12 um pixel pitch core
  • 1860 yd detection range
  • High optical magnification
  • 4x digital zoom - continuous zoom and 2x, 4x stepped zoom
  • Lightweight and rugged magnesium alloy housing
  • B-Pack mini power system
  • Picture-in-picture digital zoom
  • Video and photo recording
  • HD AMOLED micro display
  • Stream Vision app supported
  • External power supply adaptable
  • Multiple color viewing modes
  • Stadiametric rangefinder
  • IPX7 waterproof rated
