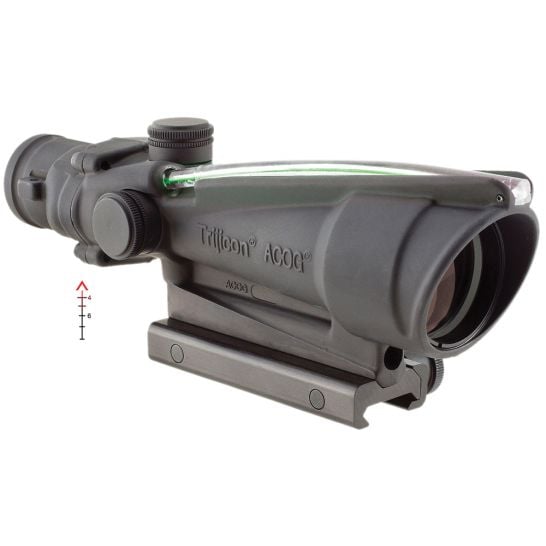

Trijicon ACOG 3.5x35mm Illuminated Green .308 BDC Chevron Rifle Scope - 100144
Out of stock

Trijicon ACOG 3.5x35mm Illuminated Green .308 BDC Chevron Rifle Scope - 100144

Details
SKU 792454
Brand Trijicon
This product is fulfilled by a PSA Partner and shipping times may vary.

Product Details

Details

  • Series/Collection: ACOG
  • Objective Size: 35mm
  • Eye Relief: 2.4"
  • Magnification: 3.5x
  • Reticle Pattern: Illuminated Green 308 BDC Chevron
  • Reticle Color: Green Day/Night
  • Length: 8"
  • Weather Resistance: Waterproof, Shock-Resistant
  • Material: Forged Aluminum
  • Finish: Matte
  • Color: Black
  • Weight: 14 oz
  • Exit Pupil: 0.39"
  • Field of View: 28.9' at 100 yd
  • Adjustment Click Value: 3" at 100 yd
  • Width: 2.1"
  • Height: 2.9"
  • Includes: Thumbscrew Flattop Adapter (TA51), 3.5x35 Scopecoat (TA63), LENSPEN (TA56), Lanyard Assembly for Adjuster Caps (TA71E), Trijicon Logo Sticker (PR15), ACOG BAC Manual, Warranty Card
  • Bullet Drop Compensating: Yes
  • Bindon Aiming Concept: Yes

Features

Trijicon's ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact riflescope with an illuminated reticle pattern for use in bright to low/no light with legendary durability and reliability. Every feature of its design was chosen for a single purpose, to provide increased hit potential in all lighting conditions. Fewer moving parts than a variable optic equals more durability, and the forged 7075-T6 aircraft-aluminum-alloy housing provides for a nearly indestructible sighting system. Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion. The ACOG is dry-nitrogen-filled to eliminate fogging and waterproof to 100 meters. It is shock-resistant, proven to withstand recoil from 22LR up to 50 BMG, and easily passes U.S. military drop test requirements. Favored by competitive shooters, the TA11 (3.5x35mm) model provides lightning fast target acquisition and superb optical clarity. This ACOG features a dual illuminated green chevron 308 BAC reticle calibrated to 800 meters. It includes a TA51 flattop adapter mount.

ACOG 3.5x35 scope with green chevron BAC reticle - the ranging reticle is calibrated for 7.62 (.308 cal) flat-top rifles to 800m. Includes flat top adapter. The chevron reticle is designed to be zeroed using the tip at 100 m. The width of the chevron at the base is 5.53 MOA which is at 19 inches at 300 m. This allows range estimation for silhouette targets.

Features:

  • Always on, always ready - most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light
  • "Both eyes open" design - shooting using the Bindon Aiming Concept (BAC) allows for improved situational awareness
  • Combat proven - no other magnified optic has been used more in combat than the ACOG
  • Take control - several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery, the 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings
  • Outstanding clarity - the quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion
  • Shock-resistant - proven to withstand recoil from a .22 LR to a .50 BMG and everything in between, easily passes US Military drop test requirements
  • Rugged, reliable housing design - fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system
  • Exact target distances and holds - most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming
  • Waterproof - exceptional waterproof performance that exceeds military standards, dry nitrogen-filled to eliminate fogging
  • Fiber optics and tritium power and illumination source
