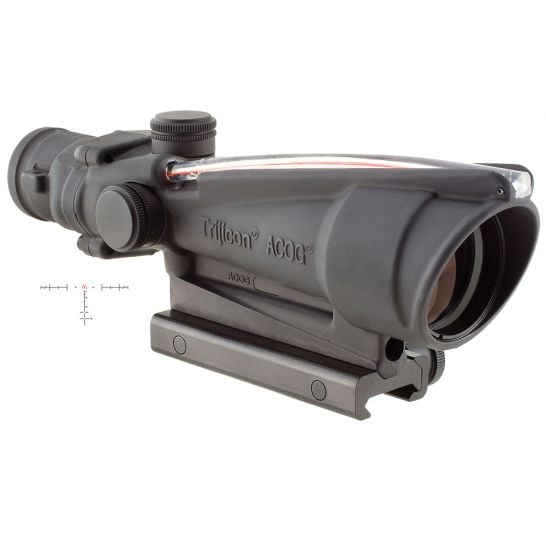

Trijicon ACOG 3.5x35mm Illuminated Red 5.56/.223 BDC Horseshoe Dot Rifle Scope - 100153
Out of stock

Trijicon ACOG 3.5x35mm Illuminated Red 5.56/.223 BDC Horseshoe Dot Rifle Scope - 100153

Details
SKU 792450
Brand Trijicon
Model Number 100153
UPC 719307302938
This product is fulfilled by a PSA Partner and shipping times may vary.

Product Details

Details

  • Series/Collection: ACOG
  • Objective Size: 35mm
  • Eye Relief: 2.4"
  • Magnification: 3.5x
  • Reticle Pattern: Illuminated Red 5.56/223 BDC Horseshoe Dot
  • Reticle Color: Red Day/Night
  • Length: 8"
  • Weather Resistance: Waterproof, Shock-Resistant
  • Material: Forged Aluminum
  • Finish: Matte
  • Color: Black
  • Weight: 14 oz
  • Exit Pupil: 0.39"
  • Field of View: 28.9' at 100 yd
  • Adjustment Click Value: 3" at 100 yd
  • Width: 2.1"
  • Height: 2.9"
  • Includes: Thumbscrew Flattop Adapter (TA51), 3.5x35 Scopecoat (TA63), LENSPEN (TA56), Lanyard Assembly for Adjuster Caps (TA71E), Trijicon Logo Sticker (PR15), ACOG BAC Manual, Warranty Card
  • Bullet Drop Compensating: Yes
  • Bindon Aiming Concept: Yes

Features

Trijicon's ACOG (Advanced Combat Optical Gunsight) is a fixed power, compact riflescope with an illuminated reticle pattern for use in bright to low/no light with legendary durability and reliability. Every feature of its design was chosen for a single purpose, to provide increased hit potential in all lighting conditions. Fewer moving parts than a variable optic equals more durability, and the forged 7075-T6 aircraft-aluminum-alloy housing provides for a nearly indestructible sighting system. Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion. The ACOG is dry-nitrogen-filled to eliminate fogging and waterproof to 100 meters. It is shock-resistant, proven to withstand recoil from 22LR up to 50 BMG, and easily passes U.S. military drop test requirements. Favored by competitive shooters, the TA11 (3.5x35mm) model provides lightning fast target acquisition and superb optical clarity. This ACOG features a dual illuminated red horseshoe 223 ballistic reticle calibrated to 800 meters. It includes a TA51 flattop adapter mount.

ACOG 3.5x35 scope with red Horseshoe BAC reticle and target reference system - the ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 1000m. Daytime illumination is provided by fiber optics and tritium illuminates the scopes at night.

Features:

  • Always on, always ready - most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light
  • "Both eyes open" design - shooting using the Bindon Aiming Concept (BAC) allows for improved situational awareness
  • Combat proven - no other magnified optic has been used more in combat than the ACOG
  • Take control - several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery, the 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings
  • Outstanding clarity - the quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion
  • Shock-resistant - proven to withstand recoil from a .22 LR to a .50 BMG and everything in between, easily passes US Military drop test requirements
  • Rugged, reliable housing design - fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system
  • Exact target distances and holds - most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming
  • Waterproof - exceptional waterproof performance that exceeds military standards, dry nitrogen-filled to eliminate fogging
  • Fiber optics and tritium power and illumination source
